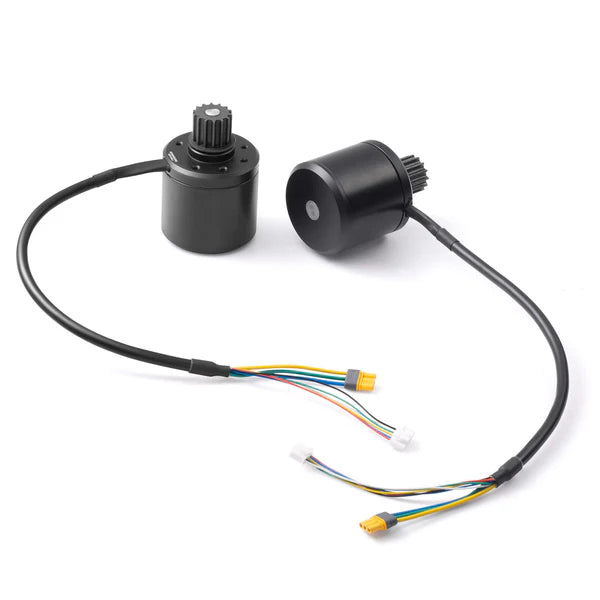

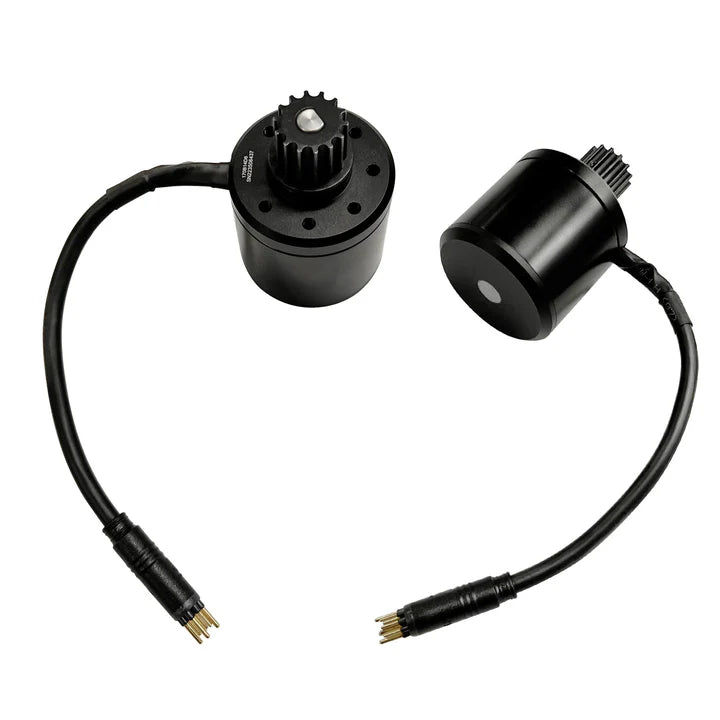

The 5255 170KV Brushless Outrunner Motor Belt Drive Motor with Closed Cover for X5-S，Venus Electric Skateboard.
Other than strong body composition, this product has a steady system, too. It holds a maximum wattage of 1600W and an amperage rating of 50A. These figures contribute to the power capacity of this motor.
Perfect for hill climbing and better acceleration, the 5255 Brushless Belt Electric Skateboard Motor will surely make a ride smoother than the most. This product is a belt-driven motor designed for superior strength. Thus, whether going uphill or racking up some speed, we can always rely on this motor.
|
Model
|
5255 170KV Motor |
| Power |
700W/Max 1600W |
Voltage
|
36V |
Load/Max Current
|
31A/105A |
| Max RPM |
Voltage * KV (170KV) |
| Weight |
1.15 lb./0.88 kg |
| Recommend Battery |
6 - 14S (22-58.8V) |
| Recommend ESC |
3 - 14S 50A |
| Diameter |
52mm |
| Length |
55mm |
| SHAFT |
10mm diameter/ 25mm length |
| Wire Configuration |
Blue = U
White = V
Yellow = W
|
