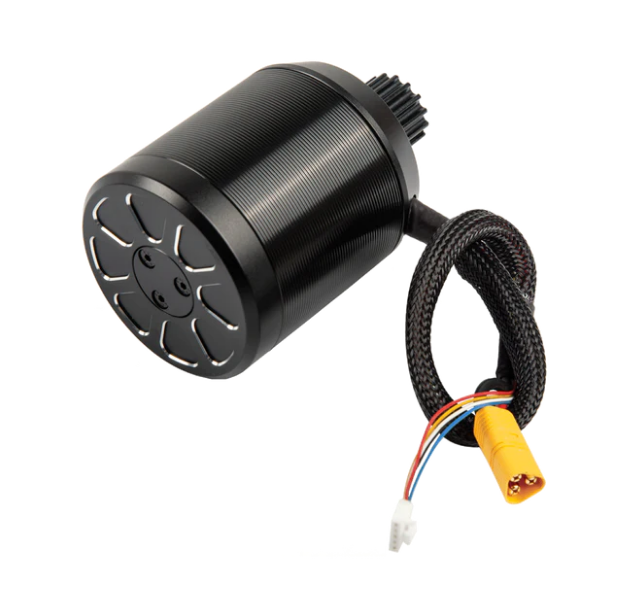

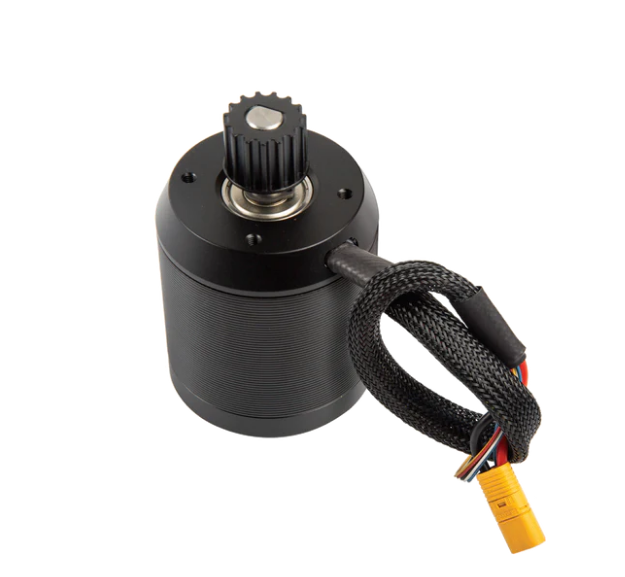

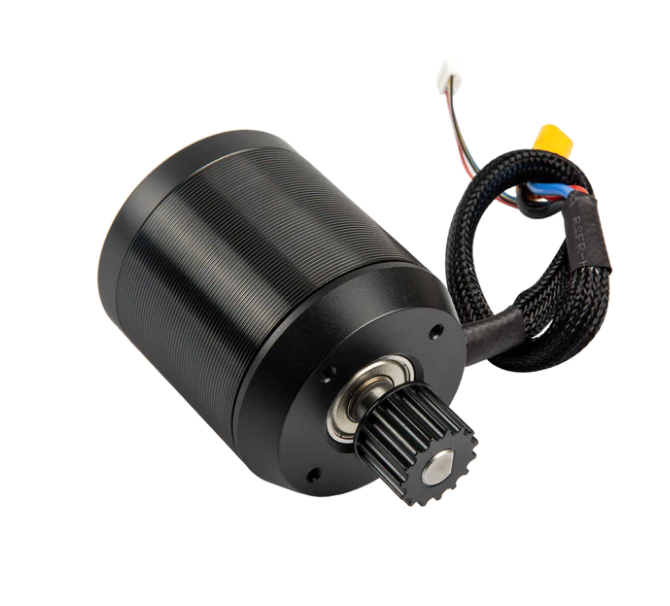

6374 170KV Motor | Brushless Electric Skateboard Motor

The 6374 170KV Brushless Outrunner Motor Belt Drive Motor with Closed Cover for Mars,Talons Electric Skateboard.

Other than strong body composition, this product has a steady system, too. It holds a maximum wattage of 3350W and an amperage rating of 105A. These figures contribute to the power capacity of this motor.

Perfect for hill climbing and better acceleration, the  6374 Brushless Belt Electric Skateboard Motor will surely make a ride smoother than the most. This product is a belt-driven motor designed for superior strength. Thus, whether going uphill or racking up some speed, we can always rely on this motor.

Model	6374 170KV Motor
Power	950W/Max 3350W
Voltage	36V
Load/Max Current	31A/105A
Max RPM	Voltage * KV (170KV)
Weight	1.15 lb./0.88 kg
Recommend Battery	6 - 14S (22-58.8V)
Recommend ESC	3 - 14S 50A
Diameter	63mm
Length	74mm
SHAFT	10mm diameter/ 25mm length
Wire Configuration	Blue = U White = V Yellow = W

Compatibility

• Applicable to 6 - 14S (22-58.8V) battery and 3 - 14S 50A  ESC

Reference Information

• The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
• Screws to mount the motor are not included with the motor.
